⚡ Rapid Response - 15-day standard unit production
♻ Green Cycle - 85% material reuse rate
🎯 Precise Customization - 20ft units to multi-story complexes
Factory-Direct Pricing | 50% Faster Installation
• Custom Design for Hospitality/Retail/Construction
• CE & ISO Certified | Global Shipping Guaranteed
Safety Performance
1.High-quality and durable material
2.Fast installation and short construction period
3.Thermal insulation, fireproof, windproof
4.No need for decoration, you can move in afterthe installation
| Size | L5950mm*W3000mm*H2800mm |
| Color | White or customized |
| Door | Steel security door |
| Frame | Galvanized steel (80g/㎡) +power coating (thickness : 0.2mm) |
| Wall( Thickness can becustomized.) | Double steel sheet EPS sandwichpanel(0.4mm+50mmthickness10kg/m3EPS+0.4mm) |
| Floor | Cement fire prevention board , Thickness : 18mm |
| Roof (Thickness can becustomized.) | Double steel sheet EPS sandwichpanel(0.4mm+50mmthickness12kg/m3EPS+0.4mm) |
| Windows | Plastic steel window |
| Bathroom and kitchen | Can be added according to request |
| Floor Purlin | Square Tube 40mm*80mm*1.2mm*14 |
| Column/Beam | Steel plate Bending ; Thickness : 2.3mm or customized |
| Corner fitting | Steel plate bending;Thickness: 4mm; Color: white or customized. |
Durable
All steel fabric parts and the size of prefab house can be made according to clients' requirement. all made of steel, with a strong anti-seismic, anti-deformation ability.
Easy Install And Transportation
The material of prefab house is light and easily to installation. one container house five workers half a day finished,installation, save manpower and time.
The housing is easy to transport, especially the modular packaging saves transportation costs. doesn't need a crane for installation.
Cost Effective
The prefab house is low cost, durable structure, convenient relocation , and environment-protection.
Customizable
Could be lifted, fixed and combined freely.
The partition wall, window, ceiling, door are optional for clients.

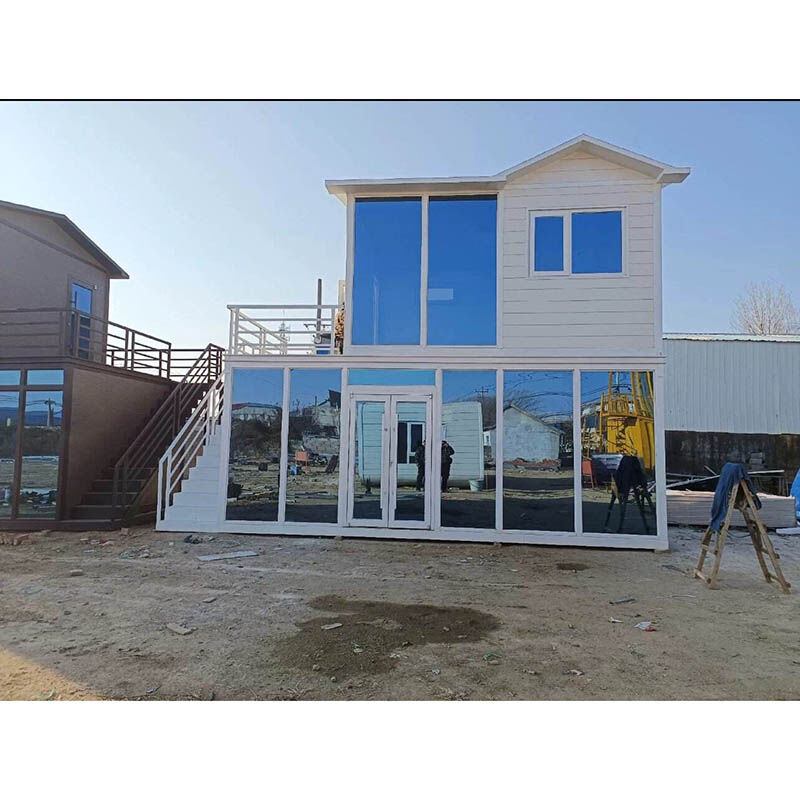

The activity room is based on a standard steel chassis, which can lead to a lot of space combinations and up to 5 stories high. Such as conference rooms, dorms, kitchens, bathrooms and so on.
Technical parameter of standard prefabricated house:
* Wind resistance: Grade 8(wind speed≤74km/h)
* Earthquake resistance: Grade 8
* Fire proof:B2 grade
