Flat Pack Worker Accommodation Container House | Prefab Staff Dormitory

Technical Specifications

Key Features & Benefits

• Q235 or Q345 light steel frame selection provides two structural grade options to match the load bearing, seismic zone, and service life requirements of the target labor camp or dormitory site, with Q345 delivering higher tensile strength for more demanding structural conditions.
• Wind Resistance Grade 12 (≤120 km/h) and Earthquake Resistance Grade 8 confirm the prefab steel frame meets structural tolerance requirements for worker accommodation deployment in high-wind, cyclone-prone, and moderate seismic hazard regions without supplemental reinforcement.
• Three insulation panel thicknesses (50 / 75 / 100 mm THC) across EPS, rock wool, glass wool, and PU core options allow thermal resistance, acoustic attenuation, and fire classification to be specified for the climate zone and occupancy requirements of the accommodation facility.
• Flat pack transport configuration reduces shipping volume relative to pre-assembled modular dormitory units, lowering per-unit freight cost and enabling delivery to remote labor camp sites with restricted crane access or limited site vehicle clearance.
• Ready-for-use deployment without assembly work, combined with pre-wired electricity, integrated lighting, and a circuit distributor, reduces on-site labor mobilization to power connection only — enabling functional dormitory occupation within a single working day of delivery.
• 30-year service life under CE, TUV, ISO9001-2000, and ISO14001 certification, with waterproof construction, sound insulation, heat preservation, and environmental protection attributes, provides the long-term habitable performance and compliance documentation required for workforce housing authority submissions and multi-year accommodation contracts.

Applications

• 1.Deployed as industrial worker accommodation units at petrochemical, manufacturing, or infrastructure project sites where Grade 12 wind tolerance, Grade 8 seismic resistance, and pre-wired electrical fit-out support safe, self-contained dormitory facilities in exposed or remote locations.

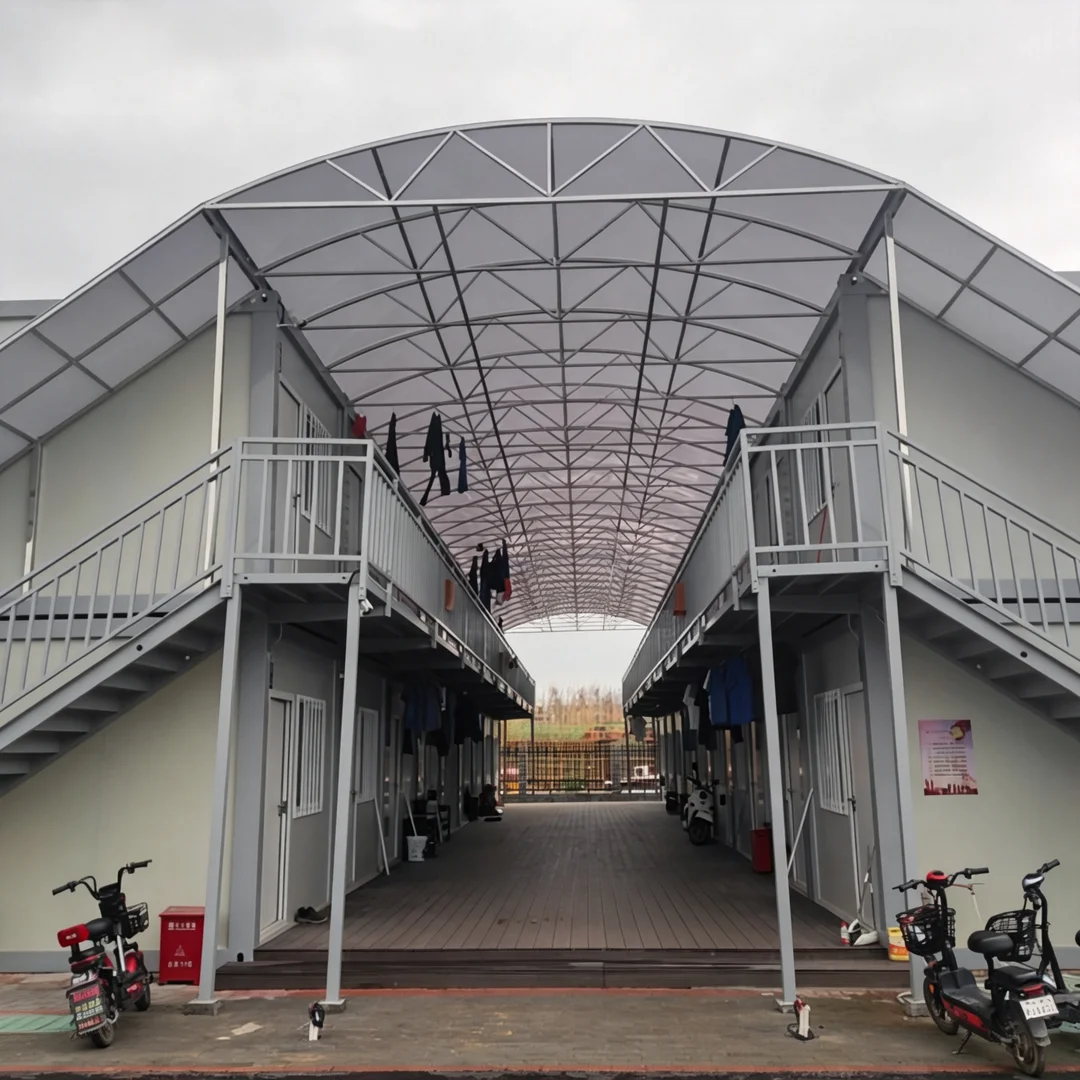

• 2.Installed as labor camp housing blocks at remote mining extraction sites where flat pack transportability, 30-year service life, heat preservation insulation, and waterproof construction sustain habitable conditions across extreme climate operating cycles.

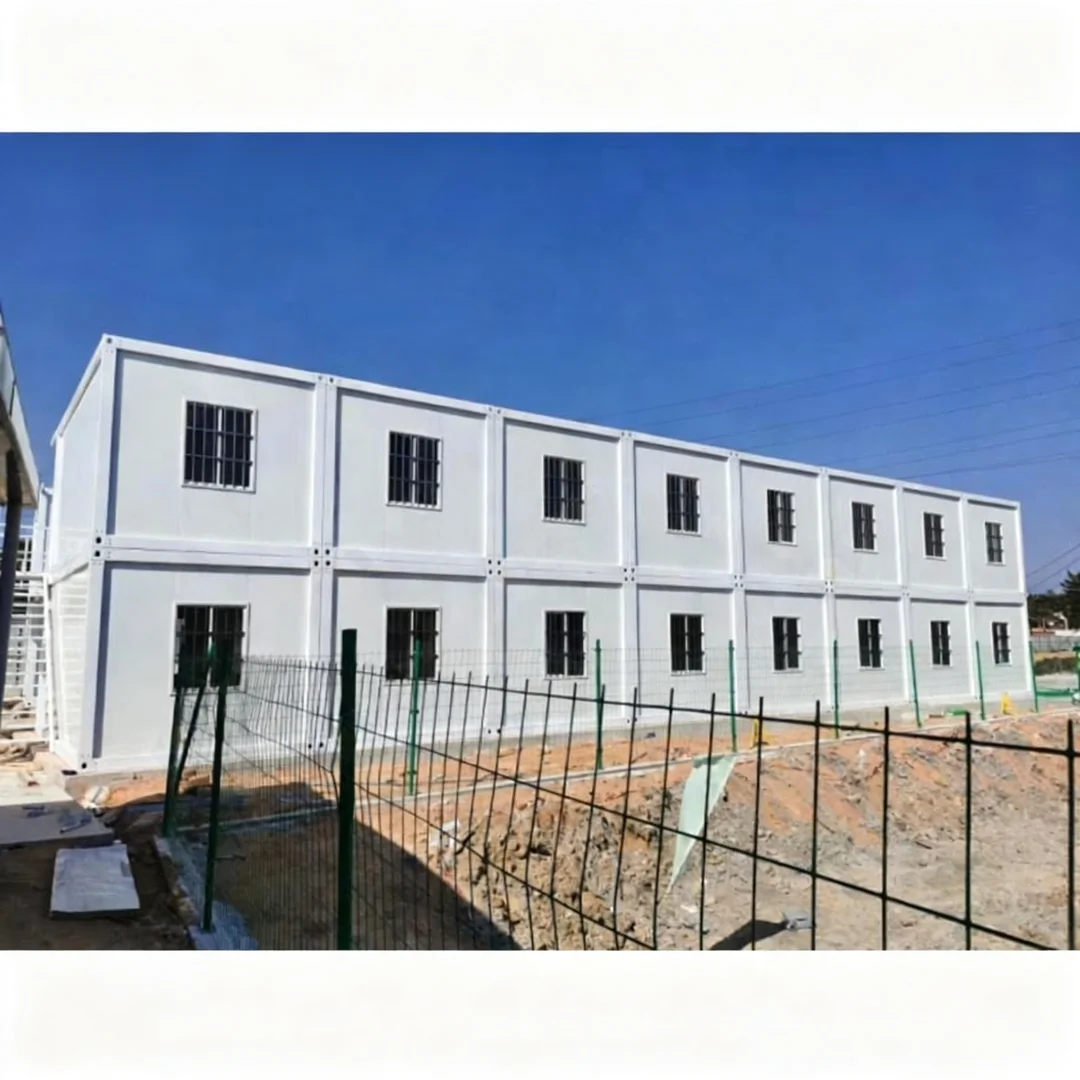

• 3.Specified for construction camp housing at large-scale civil infrastructure projects — road, dam, or port construction — where flat pack delivery density reduces logistics cost per bed, and the ready-for-use deployment model accelerates workforce accommodation establishment at each project phase.
• 4.Used for high-density staff dormitory configurations at export processing zones, industrial parks, or seasonal agricultural facilities where the standard 13.92 m² floor footprint, sound insulation performance, and security bar on the aluminum PVC sliding door meet workforce housing density and security requirements.
• 5.Deployed for international temporary workforce housing developments where CE, TUV, ISO9001-2000, and ISO14001 certification documentation supports project authority approval, and full graphic and 3D model design support enables pre-construction dormitory layout planning, capacity calculation, and permit submissions.

FAQ

Q1: What are the confirmed structural dimensions and certified mechanical resistance boundaries for this accommodation unit?

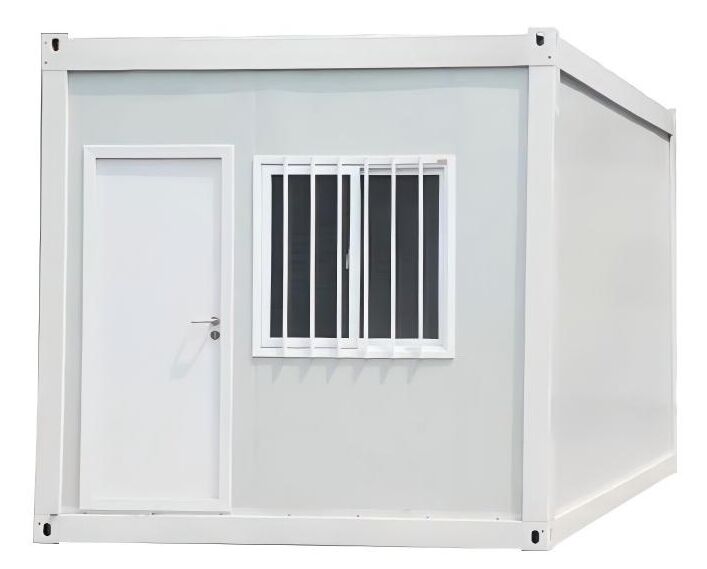

The standard unit envelope is 5800 × 2400 × 2896 mm (13.92 m² floor area) on a Q235 or Q345 light steel frame, rated to Wind Resistance Grade 12 (≤120 km/h) and Earthquake Resistance Grade 8. Snow load, live load, and wall permitted loading are each rated at 0.6 kN/m².

Q2: What are the flat pack delivery mechanics and on-site setup steps for ready-for-use dormitory deployment?

The unit is shipped in flat pack format to reduce transport volume and is confirmed as ready for use without assembly work upon site power connection. Specific unfolding sequence, lifting equipment requirements, crew size, and site preparation parameters are not confirmed in the current brief — buyers should request the installation and deployment guide from the manufacturer prior to logistics and site planning.

Q3: What maintenance protocols apply for water cleaning, floorboard durability, and waterproof performance over the 30-year service life?

The unit supports interior water cleaning, with MGO board, fiber cement board, or PVC board flooring providing moisture-resistant surfaces suited to wet-cleaning protocols in high-occupancy dormitory environments. The structure is confirmed waterproof with a 30-year service life; specific seam maintenance schedules, sealant replacement intervals, and floorboard chemical resistance parameters are not confirmed in the current brief and should be requested from the manufacturer.

Q4: How are CE, TUV, ISO9001-2000, and ISO14001 certifications validated for workforce housing authority submissions?

The flat pack worker accommodation container house is certified under CE, TUV, ISO9001-2000, and ISO14001 frameworks, providing European conformity, product quality management, and environmental management documentation for procurement validation and housing authority submissions. Buyers should request the specific certificate documents and applicable standard scope references from the manufacturer to confirm current certification validity before submission.
