Mobile Portable Flat Pack Container House | Prefab Construction Site Locker Room

Technical Specifications

Key Features & Benefits

• Q235 or Q345 light steel frame selection provides two structural grade options — Q235 for standard load conditions and Q345 for higher-strength applications — allowing procurement teams to match the structural specification to site load, seismic zone, and service life requirements.
• Wind Resistance Grade 12 (≤120 km/h) and Earthquake Resistance Grade 8 confirm the container frame meets the structural tolerance thresholds for deployment in high-wind coastal regions, cyclone-prone zones, and moderate seismic hazard environments without supplemental reinforcement.
• 50, 75, or 100 mm THC insulation panels in EPS, rock wool, glass wool, or PU sandwich panel cores deliver selectable thermal resistance, acoustic attenuation, and fire performance profiles, allowing climate zone and occupancy classification requirements to be met within a single container unit specification.
• Flat pack transport configuration reduces shipping volume relative to pre-assembled modular units, lowering freight cost per unit and enabling container delivery to sites with restricted crane or heavy vehicle access where fully assembled modules cannot be placed.
• Ready-for-use deployment without assembly work — combined with pre-wired electricity, integrated lighting, and a circuit distributor — reduces on-site labor mobilization requirements to power connection only, enabling operational facility establishment within a single working day.
• 30-year certified service life with waterproof construction, sound insulation, and heat preservation validated under CE, TUV, ISO9001-2000, and ISO14001 certification frameworks provides the long-term performance and quality documentation required for multi-year project specifications and facility authority submissions.

Applications

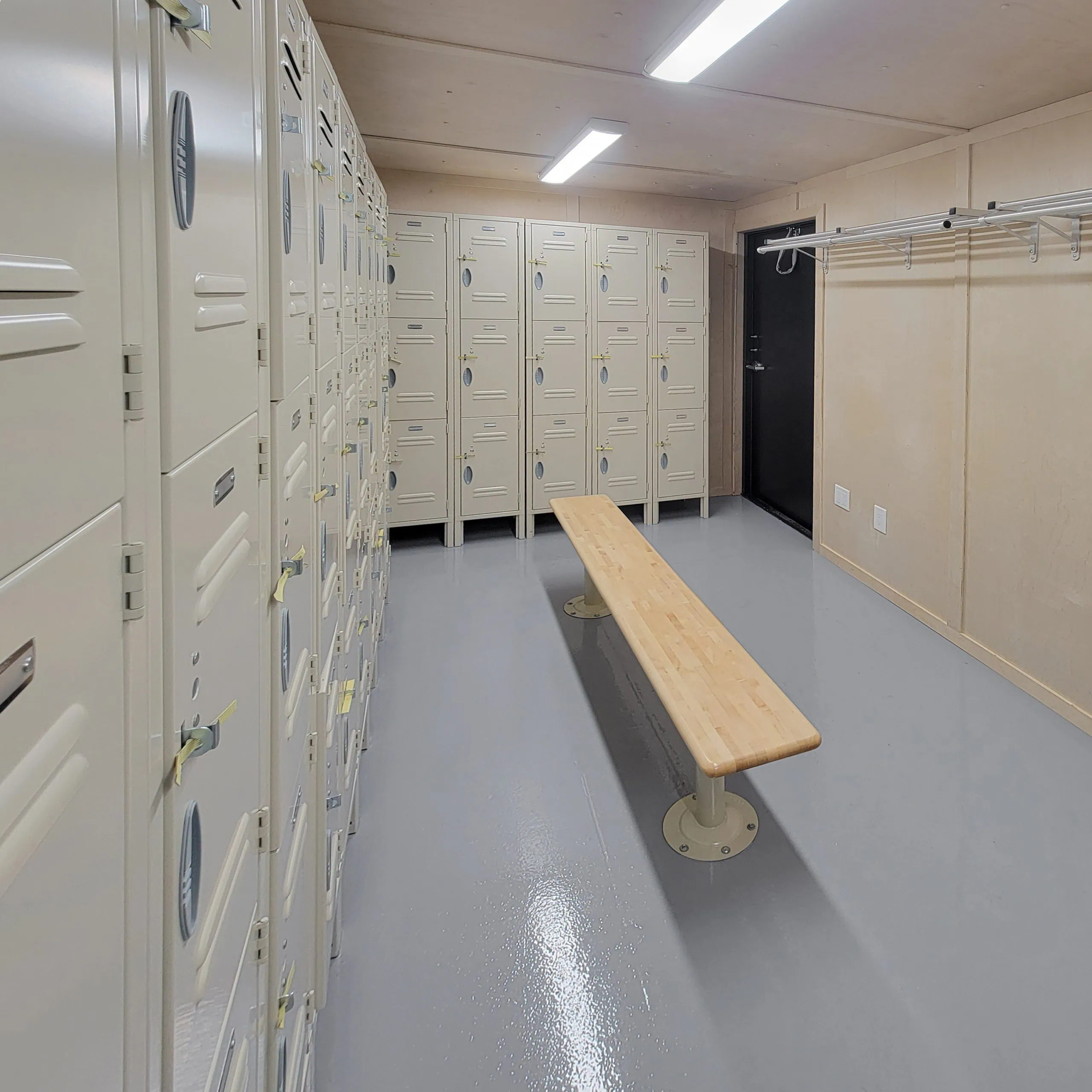

• 1.Deployed as construction site locker rooms where the flat pack delivery format reduces transport cost, the Grade 12 wind and Grade 8 seismic structural ratings cover exposed site conditions, and the pre-wired electrical fit-out provides a fully operational facility upon power connection.

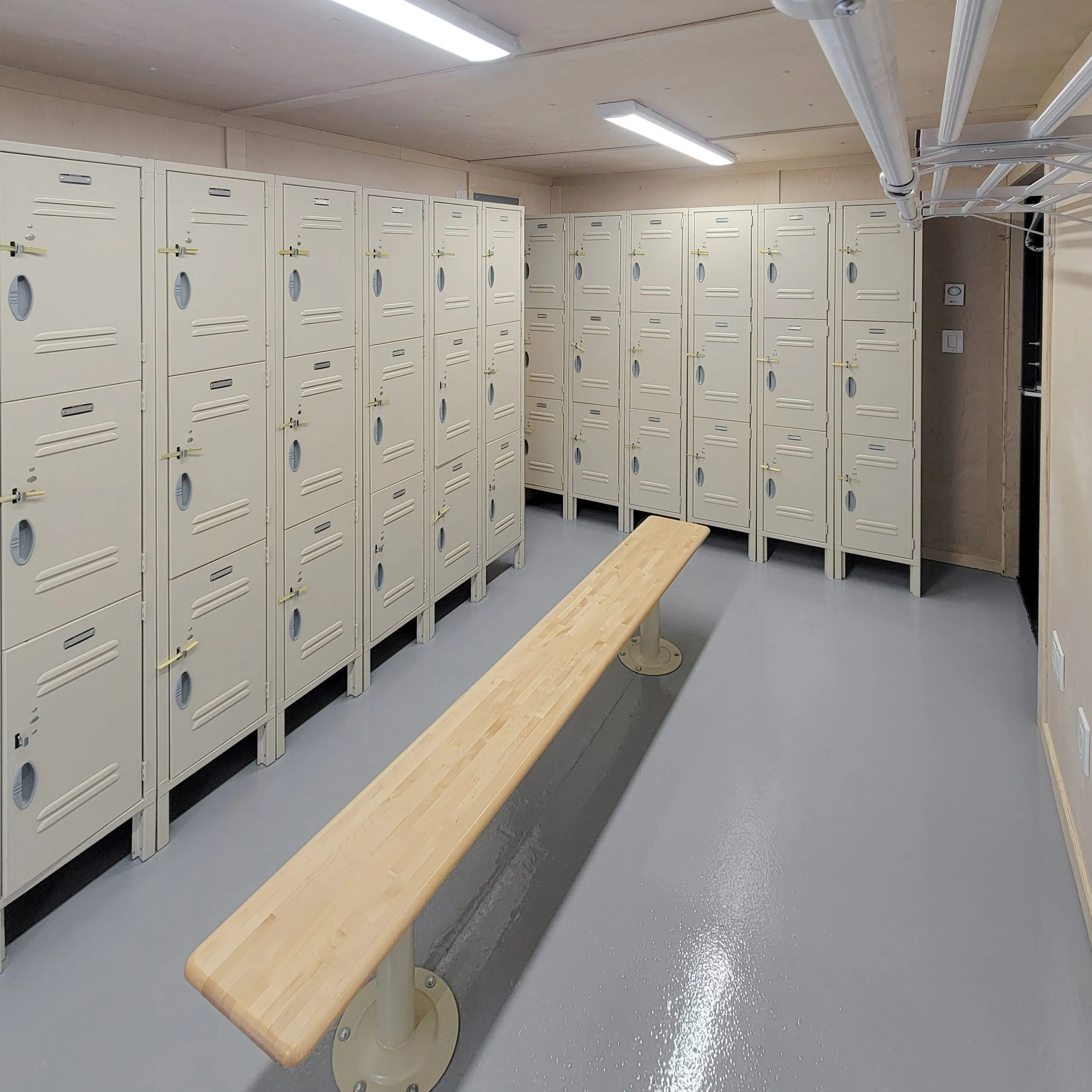

• 2.Installed as mining camp break rooms at remote resource extraction sites where the 30-year service life, waterproof construction, and heat preservation performance of the insulated sandwich panel walls support long-term autonomous facility operation in extreme climate conditions.
• 3.Specified for remote worker changing rooms at infrastructure project sites — pipeline, power, or road construction — where flat pack transportability, convenient mobility between project phases, and interior water cleaning capability meet the operational requirements of itinerant workforce facilities.
• 4.Used as camp site rest rooms at temporary construction or event infrastructure where the 13.92 m² standard floor footprint, aluminum PVC sliding door with security bar, and sound insulation performance deliver a functional, secure, and quiet occupant environment.
• 5.Deployed for international temporary infrastructure developments where CE, TUV, ISO9001-2000, and ISO14001 certification documentation supports project authority approval, and 3D model design support facilitates pre-construction facility layout planning and permit submissions.

FAQ

Q1: What are the confirmed structural dimensions and certified mechanical resistance boundaries?

The standard container envelope is 5800 × 2400 × 2896 mm (13.92 m² floor area), on a Q235 or Q345 light steel frame rated to Wind Resistance Grade 12 (≤120 km/h) and Earthquake Resistance Grade 8. Snow load, live load, and wall permitted loading are each rated at 0.6 kN/m².

Q2: What are the flat pack delivery mechanics and on-site setup steps for ready-for-use deployment?

The container is shipped in flat pack format to reduce transport volume, and is confirmed as ready for use without assembly work upon delivery and site power connection. Specific unfolding sequence, required lifting equipment, crew size, and site preparation requirements are not confirmed in the current brief — buyers should request the installation and deployment guide from the manufacturer prior to logistics planning.

Q3: What maintenance protocols apply for water cleaning, floorboard durability, and waterproof seam integrity over the 30-year service life?

The container supports interior water cleaning, with MGO board, fiber cement board, or PVC board flooring options providing moisture-resistant substrate surfaces suited to wet-cleaning protocols. The structure is confirmed as waterproof with a 30-year service life; specific seam maintenance intervals, sealant replacement schedules, and floorboard chemical resistance parameters are not confirmed in the current brief and should be requested from the manufacturer.

Q4: How are CE, TUV, ISO9001-2000, and ISO14001 certifications validated for procurement and project authority submissions?

The mobile portable flat pack container house is certified under CE, TUV, ISO9001-2000, and ISO14001 frameworks, providing quality management, environmental management, and European conformity documentation for procurement validation and project authority submissions. Buyers should request the specific certificate documents and applicable product standard references from the manufacturer to confirm scope and current certification validity.
